PIPENET Vision 1.9.0 – latest version of PIPENET released in December 2017. PIPENET Vision 1.9.0 has a new interface, runs hydraulic calculations faster, and includes more than 100 new features.Contact us to firstname.lastname@example.org to upgrade.
The latest evolution of PIPENET, PIPENET Vision 1.9.0 has more than 100 enhancements including templates, an improved graph viewer and a streamlined user interface. There are many significant improvements that will revolutionise the PIPENET experience. Here is a summary of the new features- see the help and PDF manuals for further information. We are sure you will enjoy the outstanding capabilities of PIPENET Vision 1.9.0.
PIPENET TRANSIENT MODULE provides a rapid means
of in-house rigorous transient analysis and pinpoints
problem areas and potential solutions.
Applications of PIPENET Transient module:
- Loading/unloading systems - hydrocarbons
- Cooling water systems modeling
- Firewater systems surge analysis
- Water injection systems studies

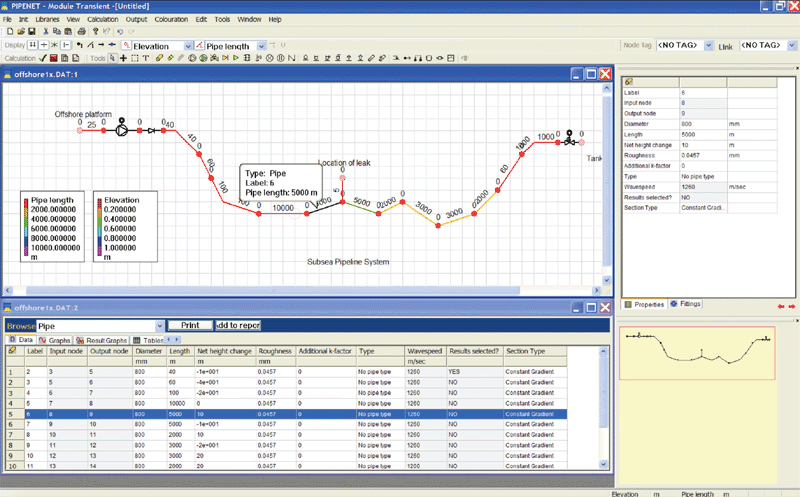

- Subsea & cross country pipelines - hydrocarbons
- Steam hammer
PIPENET Transient is the perfect tool for modeling networks:
- Pipes – rigorous and short, mile post data

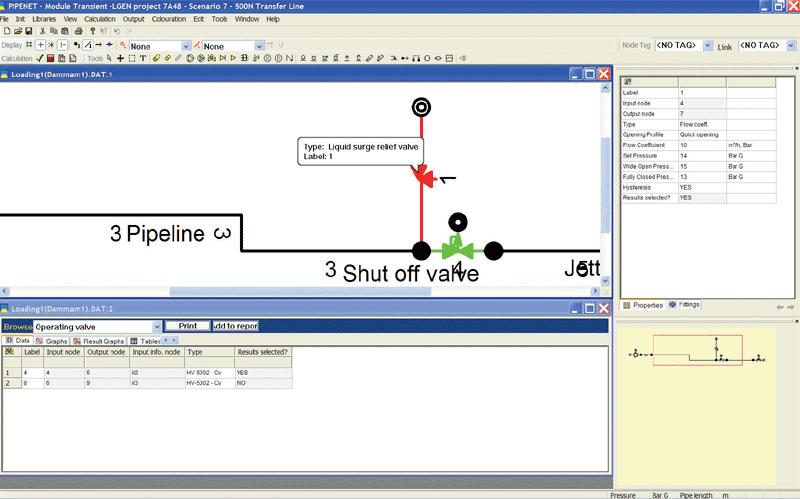

- Valves – operating, surge relief, control,non-return, swing check, regulating, bursting disk, inertial check
- Pumps – simple and turbo
- Tanks – simple, accumulator, surge, receiving vessel
- Vacuum breakers – with or without hysteresis
- Control systems – pressure, flow, differential pressure sensors, PID control, transfer functions, switches
- Caissons – partially filled pipes
- Specifications – extensive range of boundary conditions
- Hydraulic transient forces – dynamic/total, unbalanced/complex forces
PIPENET Transient Features:

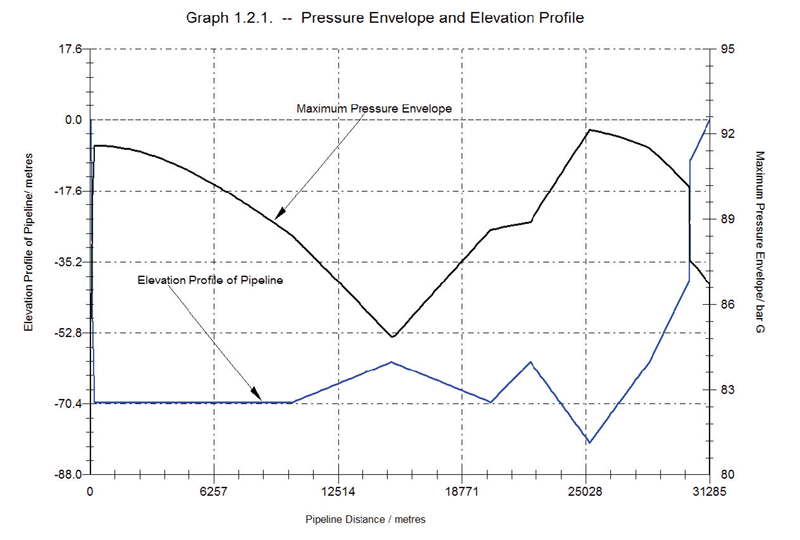

- Output – graphical, tabular and forces output, snapshot, dynamic movie, min/max tables, pressure envelopes, hydraulic grade lines
- Initial state – steady state, user-defined, run-in time, final steady state
- Cavitation modeling – simple cavitation, cavity separation with elevation effect
- Time step – fixed/variable, software/user-defined
- Force – time history neutral file output for reading by pipe stress analysis and finite element programs
PIPENET Transient professionally performs dynamic analysis with ease and accuracy.
