PIPENET Spray/Sprinkler Module is excellent for hydraulic analysis of firewater systems in compliance with NFPA13, NFPA15 and NFPA16 rules. This addresses the hydraulic analysis requirements of virtually all national and international standards. Ideal for the design of systems used in critical applications such as offshore platforms, FPSO’s, petrochemical plants, power plants, refineries, ships, and airport hangers.

Applications of PIPENET Spray/Sprinkler module:

• Deluge systems
• Firewater ringmain systems
• Sprinkler systems
• Foam solution systems
• Foam concentrate systems
• Spray mist systems

PIPENET Spray/Sprinkler is the ideal modeling tool for:

Pipes, nozzles, fittings, overboard dump valves,non-return valves, orifice plates, equipment items.

PIPENET Spray/Sprinkler Features:

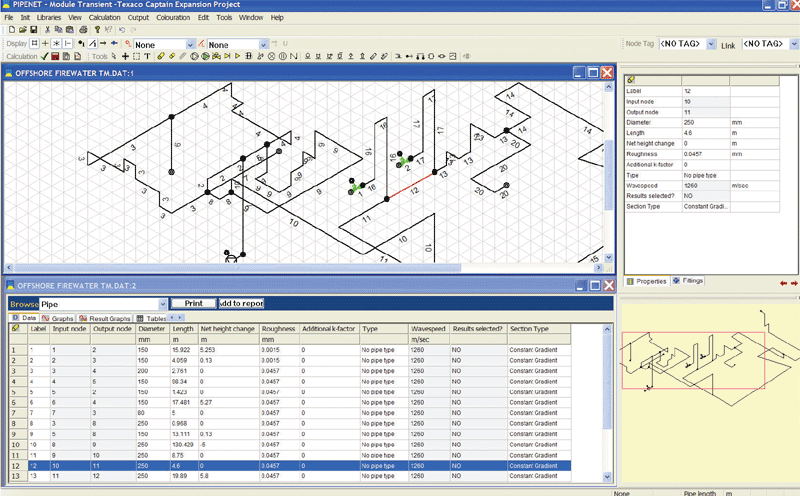

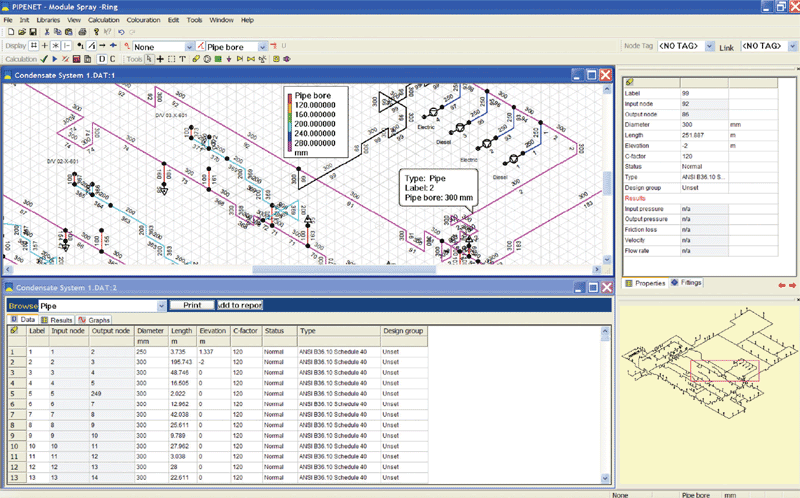

• Input – isometric or orthogonal schematic input, tabular input including copy and paste from spreadsheets
• Underlay – import of drawings for use as underlays for schematic drawings

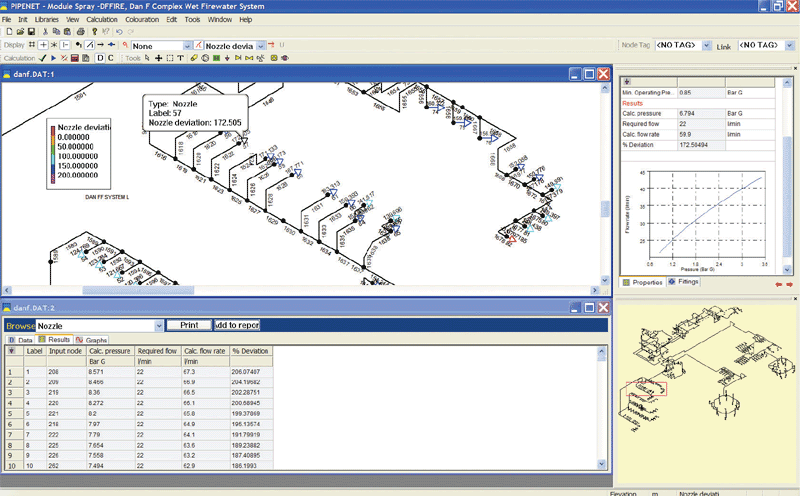

• Output – easy, readable output as tables, or display of data and results on the schematic

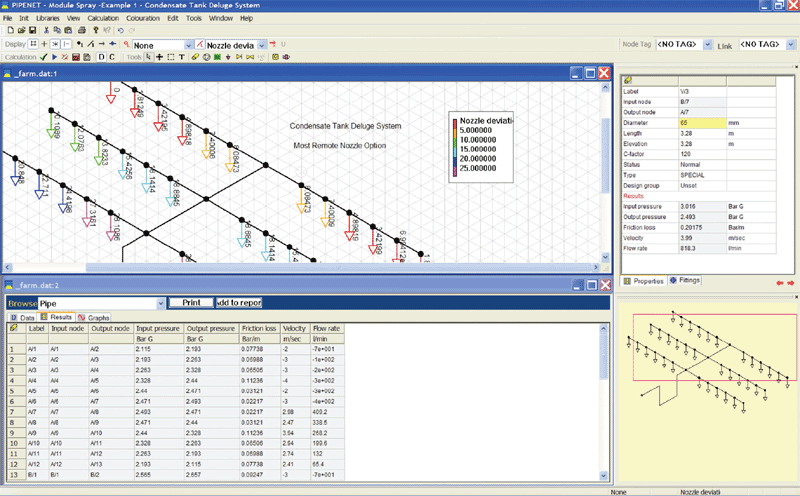

• Choice of calculation modes – hydraulically most remote nozzle, inlet pressure/flowrate
• Orifice plates – diameter to be calculated or specified
• Multiple pump scenarios
• Multiple fire scenarios
• Block/Break of pipes to simulate closed valves and burst pipes
• Pumps – sizing of pumps or user-defined vendor’s pump curves
• Pipe schedules – built-in and user-defined pipe schedules, lined pipes, multiple pipe schedules in one system
• Overboard dump and minimum flow valves
• User defined libraries of pipe schedules, nozzles, deluge valves and linings
• Choice of Hazen-Williams and Darcy-Weisbach equations
• Choice of pipe or node elevations

PIPENET Spray/Sprinkler module is the fire protection professional’s first choice.
